Products

Endschalter, K Serie. Dimension nach EN 50047







  • Abmessungen gemäß EN50047 und EN50041 Normen

  • Positive Abschaltung der Kontakte

  • breite Angebotspalette von Betätigungsköpfen

  • Versionen mit austauschbaren und ausrichtbaren Köpfen

  • Versionen mit abnehmbaren und austauschbaren Hilfskontaktblöcken





BestellnummerBeschreibungGehäuseKontaktePreis
KB A1 S11 Endschalter mit StößelKunststoff1S+1Ö Auslösekontakt 
KB B1 S11 mit Rollenstößel aus KunststoffKunststoff1S+1Ö Auslösekontakt 
KB B2 S11 mit Rollenstössel aus MetallKunststoff1S+1Ö Auslösekontakt 
KB C1 S11 mit Hebel und Plastikrolle i.d. MitteKunststoff1S+1Ö Auslösekontakt 
KB C2 S11 mit Hebel und Metallrolle i.d. MitteKunststoff1S+1Ö Auslösekontakt 
KB D1 S11 Endschalter mit Hebel und seitlicher RolleKunststoff1S+1Ö Auslösekontakt 
KB D2 S11 mit Hebel und seitlicher MetallrolleKunststoff1S+1Ö Auslösekontakt 
KB E1 D02 mit Hebel und Kunstststoffrolle Ø19x5mmKunststoff2 Ö Langs.
KB E1 S11 mit Hebel und Kunstststoffrolle Ø19x5mmKunststoff1S+1Ö Auslösekontakt 
KB E2 S11 Mit Hebel und Metallroller Ø19x5mmKunststoff1S+1Ö Auslösekontakt 
KB F1 S11 mit Hebel und adjust. Kunststoffrolle Ø19x5mmKunststoff1S+ 1Ö Auslösekontakt
KB F2 S11 mit Hebel und adjust. Metallrolle Ø19x5mmKunststoff1S+ 1Ö Auslöskontakt
KB F3 S11 mit Hebel und adjust. Gummirolle Ø50x10mmKunststoff1S+ 1Ö Auslösekontakt
KB L1 S11 mit einstellbarem MetallstabKunststoff1S+ 1Ö Auslösekontakt
KB L2 S11 mit einstellbarem KunststoffstabKunststoff1S+ 1Ö Auslösekontakt
KM A1 S11 Endschalter mit StößelMetall1S+1Ö Auslösekontakt 
KM B1 S11 mit Rollenstößel aus KunststoffMetall1S+1Ö Auslösekontakt 
KM B2 S11 mit Rollenstössel aus MetallMetall1S+1Ö Auslösekontakt 
KM C1 S11 mit Hebel und Plastikrolle i.d. MitteMetall1S+1Ö Auslösekontakt 
KM C2 S11 mit Hebel und Metallrolle i.d. MitteMetall1S+1Ö Auslösekontakt 
KM D1 S11 Endschalter mit Hebel und seitlicher RolleMetall1S+1Ö Auslösekontakt 
KM D2 S11 mit Hebel und seitlicher MetallrolleMetall1S+1Ö Auslösekontakt 
KM E1 D02 mit Hebel und Kunstststoffrolle Ø19x5mmMetall2 Ö Langs.
KM E1 S11 mit Hebel und Kunstststoffrolle Ø19x5mmMetall1S+1Ö Auslösekontakt 
KM E2 S11 Mit Hebel und Metallroller Ø19x5mmMetall1S+1Ö Auslösekontakt 
KM F1 S11 mit Hebel und adjust. Kunststoffrolle Ø19x5mmMetall1S+ 1Ö Auslösekontakt
KM F2 S11 mit Hebel und adjust. Metallrolle Ø19x5mmMetall1S+ 1Ö Auslöskontakt
KM F3 S11 mit Hebel und adjust. Gummirolle Ø50x10mmMetall1S+ 1Ö Auslösekontakt
KM L1 S11 mit einstellbarem MetallstabMetall1S+ 1Ö Auslösekontakt
KM L2 S11 mit einstellbarem KunststoffstabMetall1S+ 1Ö Auslösekontakt

Images

KB A - KM A                                KB C - KM C                               KB E - KM E                                KB F3

Zubehör und Ersatzteile für Endschalter Gehäuse

BestellnummerBeschreibungGehäuseKontaktePreis
KX CB S11 komplettes Gehäuse mit Hilfskontakten Kabeleintritt von untenKunststoff1S+ 1Ö Auslösekontakt
KX CC S11 komplettes Gehäuse mit Hilfskontakten beidseitiger KabeleintrittKunststoff1S+ 1Ö Auslösekontakt
KX CM S11 komplettes Gehäuse mit Hilfskontakten Kabeleintritt von untenMetall1S+ 1Ö Auslösekontakt
KX CN S11 komplettes Gehäuse mit Hilfskontakten beidseitiger KabeleintrittMetall1S+ 1Ö Auslösekontakt

Images

KX CB - KX CM

Zubehör und Ersatzteile für Endschalter Betätiger

BestellnummerBeschreibungPreis
KX A A1 Betätigungskopf mit Stab
KX A B1 Betätigungskopf mit Stab und Kunststoffrolle
KX A C1 Betätigungskopf mit Hebel und Kunststoffrolle in der Mitte
KX A D1 Bestätigungskopf mit Hebel und seitlicher Kunststoffrolle
KX A E1 Betätigungskopf mit Hebel und Kunststoffrolle
KX A E3 Betätigungskopf mit Gummirolle Ø50x10mm
KX A F1 Betätigungskopf mit einstellbarem Hebel
KX A F3 Betätigungskopf mit einstellbarem Hebel und Gummirolle Ø50x10mm
KX A F4 Betätigungskopf mit einstellbarem Hebel und vorstehender Gummirolle Ø50x10mm
KX A L1 Betätigungskopf mit einstellbaren Kunststoffstab

Images

KX A B1

Sicherheitsendschalter, Dimension nach EN 50047

BestellnummerSicherheitsendschalter, Dimension nach EN 50047GehäuseKontaktePreis
KB N1 L11 mit SchlüsselKunststoff1S+1Ö Langs.
KB P1 L11 mit SchanierKunststoff1S+1Ö Langs.
KB Q1 L11 mit StoßerKunststoff1S+1Ö Langs.
KM P1 L11 mit SchanierMetall1S+1Ö Langs.
KM Q1 L11 mit StoßerMetall1S+1Ö Langs.

Images

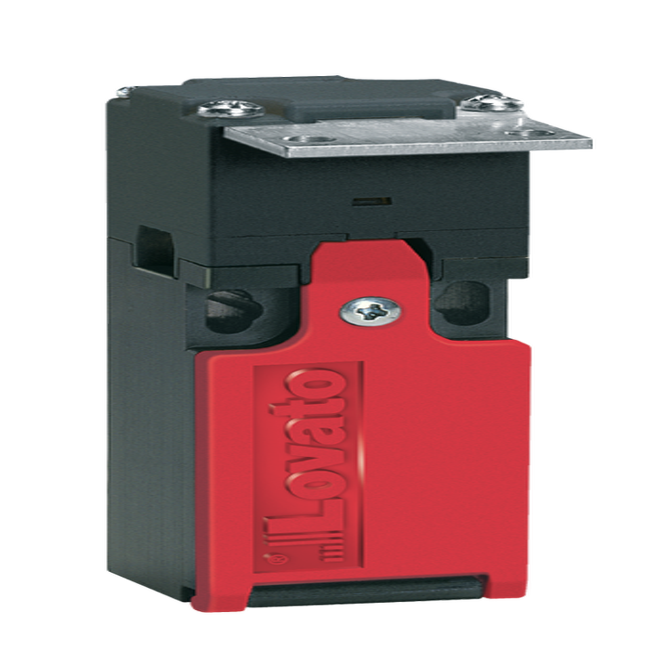

KB N...

Mikroschalter 1S/Ö

BestellnummerMikroschalter 1S/ÖAnschlussPreis
KS A1 V mit Stößel, Metalltaste, mit NadelSchraubanschluss
KS A2 V mit Stößel, Metalltaste, hoher StabSchraubanschluss
KS A3 V mit Stößel, Metalltaste niedriger StabSchraubanschluss
KS A4 V mit Stößel, Metalltaste, befest. Gewindekopf M12Schraubanschluss
KS A9 V mit TasteSchraubanschluss
KS B1 V mit Rollenstößel, Befestigung Gewindekopf M12Schraubanschluss
KS B2 V mit Rollenstößel, Befestigung Gewindekopf M12 90°Schraubanschluss
KS C1 V mit 26,6mm Hebel und RolleSchraubanschluss
KS L1 V mit flachem 63mm HebelSchraubanschluss

Images

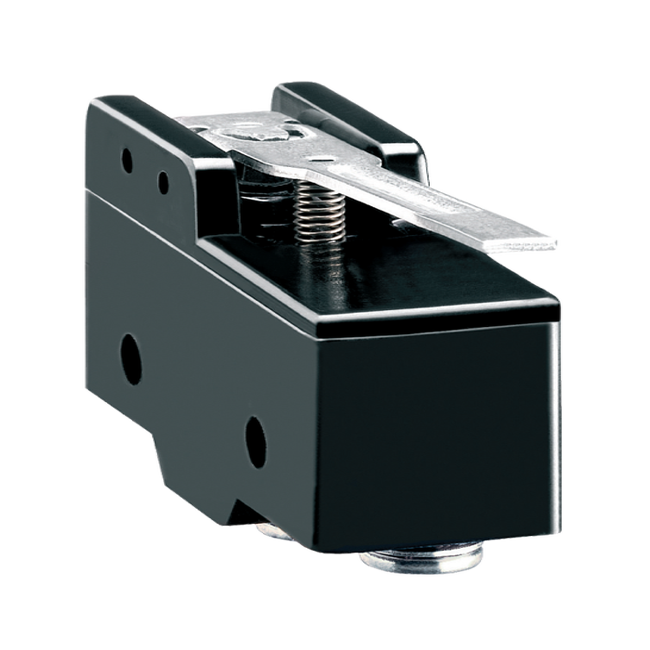

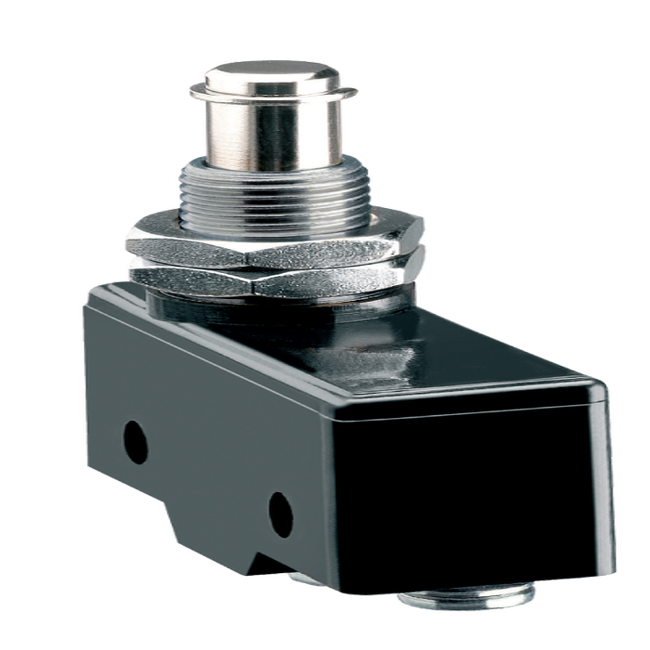

KS L1 V                                        KS A4 V

Pedalschalter

BestellnummerPedalschalterGehäuseKontaktePreis
KG1 00 S11 ein Pedal mit freier Bewegung, offenKunststoff1S+1Ö Auslösekontakt
KG2 00 S11 ein Pedal mit freier Bewegung, geschlossenKunststoff1S+1Ö Auslösekontakt
KR1 00 S11 ein Pedal mit freier Bewegung, offenMetall1S+1Ö Auslösekontakt
KR2 00 S11 ein Pedal mit freier Bewegung, geschlossenMetall1S+1Ö Auslösekontakt

Images

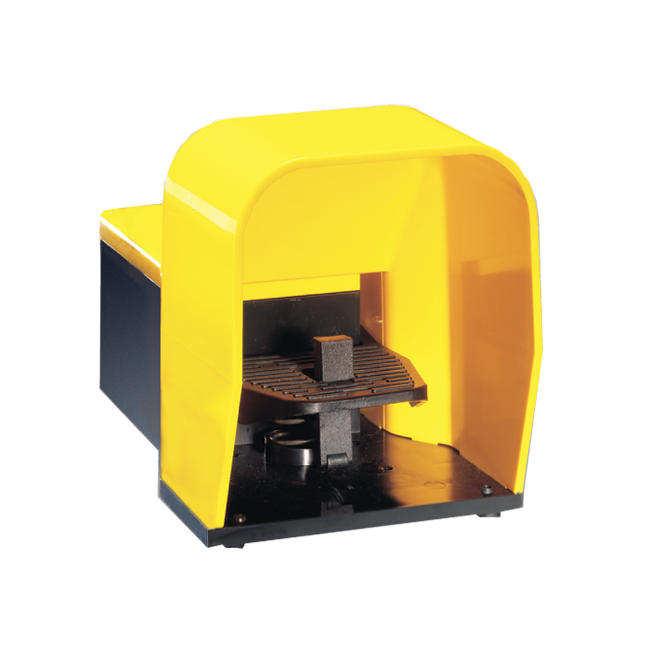

KG2 00

Zubehör Kabelverschraubung

BestellnummerKabelhalterPreis
KX P01 M20 Verschraubung

Images

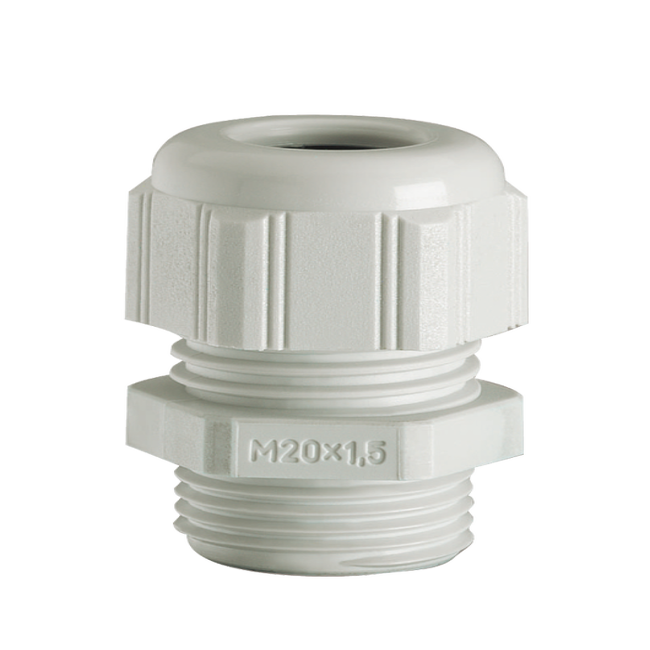

KX P 01
